A browser-based piano practice tool. Drop in a MIDI file, a MusicXML score, or even a PDF of sheet music. Bach to Basics turns it into synced views of falling notes, an interactive 88-key piano, and rendered sheet music, then layers on practice tools (A/B loop, speed trainer, wait mode, metronome, transpose) to help you learn the piece.

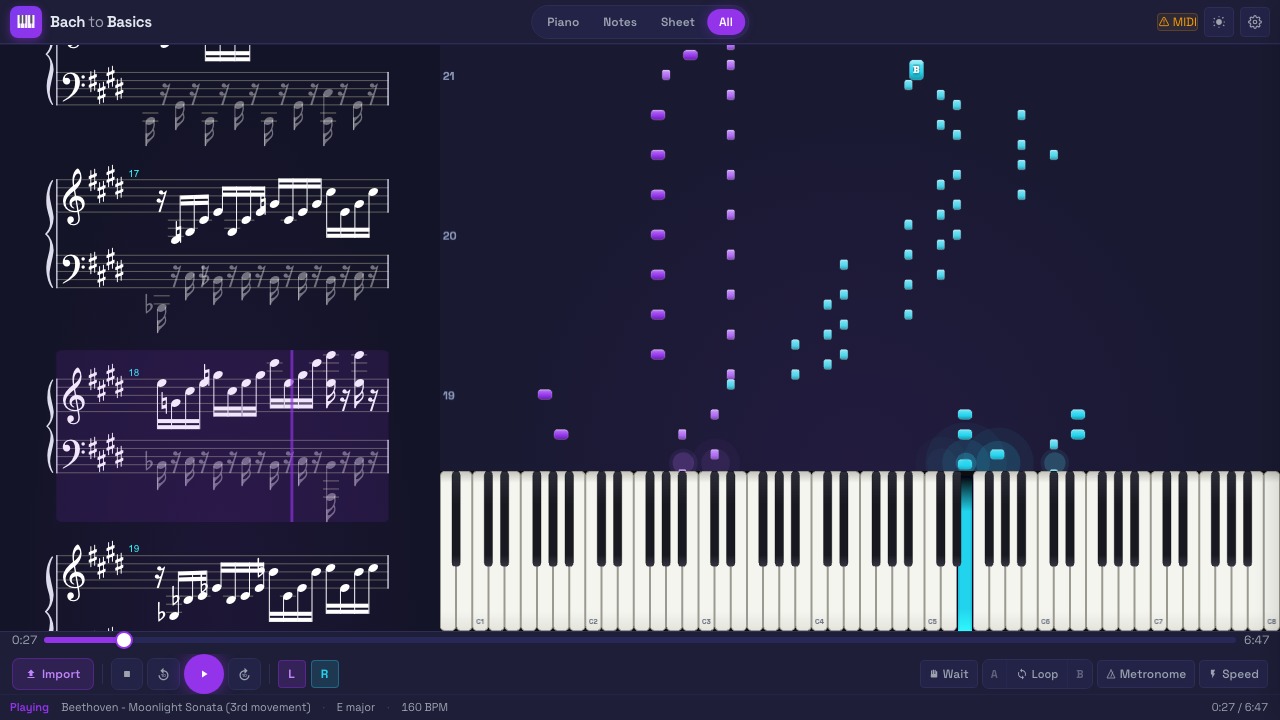

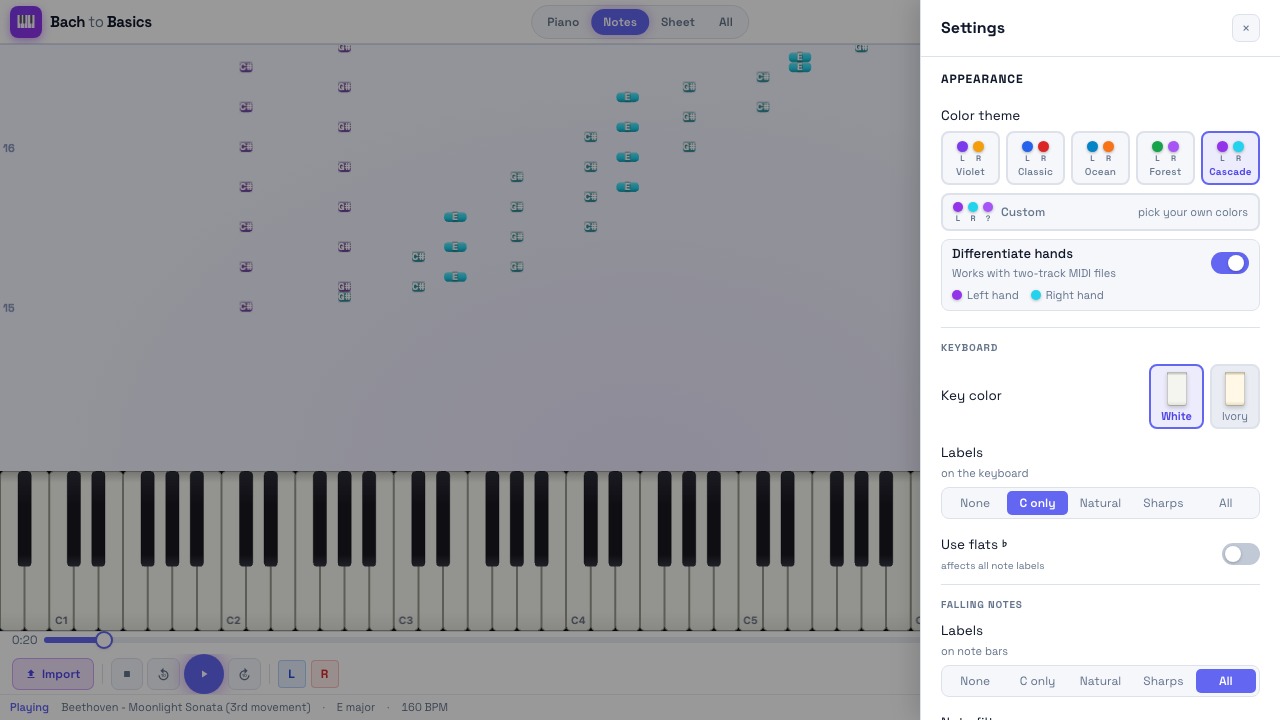

Sheet music	All views	Settings

Features

Import

• MIDI (.mid, .midi): parsed in a Web Worker, converted to MusicXML on the backend for sheet rendering
• MusicXML (.xml, .mxl): both uncompressed and compressed (zip-style) variants
• PDF sheet music (.pdf): optical music recognition via Audiveris to MusicXML, then to MIDI (optional setup, see below)
• Audio recordings (.mp3, .wav, .m4a, .ogg, .flac, .aac): audio-to-MIDI transcription via Basic Pitch (optional setup, see below) - drop a recording of yourself improvising, get a playable piano roll

Drag-and-drop anywhere on the window, or use the import button.

⚠️ A note on import accuracy. PDF-to-MIDI (optical music recognition), MIDI-to-sheet-music (notation reconstruction), and audio-to-MIDI (pitch detection) are all inherently lossy conversions. Expect some inconsistencies:

• PDF imports can mis-read notes, dynamics, ornaments, articulation, and voicing, especially with low-resolution scans, handwritten scores, or complex layouts. Audiveris is the best open-source OMR engine available, but no engine matches a careful human transcription.
• MIDI imports produce sheet music by re-deriving notation from raw note timings. MIDI doesn't encode key signatures, beaming, voicing, articulation, or enharmonic spelling, so the rendered sheet is an interpretation, not a faithful reproduction of the composer's original score.
• Audio imports detect pitches in the mixed signal - this is pitch-detection, not source separation. Quality is excellent on solo instruments (piano, voice, guitar) and degrades on complex mixes (full-band recordings with drums + bass + vocals). For multi-track sources, expect a rough sketch rather than a clean transcription. Solo piano recordings give the best results.

For the cleanest sheet-music experience, import a MusicXML file (or .mxl) when you have one, which preserves full notation semantics end-to-end.

Visualization

• Falling notes: Synthesia-style, GPU-accelerated via PixiJS. Hand-color separation, octave grid, measure numbers, optional beat lines, sustain-pedal indicators, ghost-notes-while-pedal-held, configurable impact effects (bloom / side burst / particle trail / off), and a "note outline" mode for high-contrast viewing.

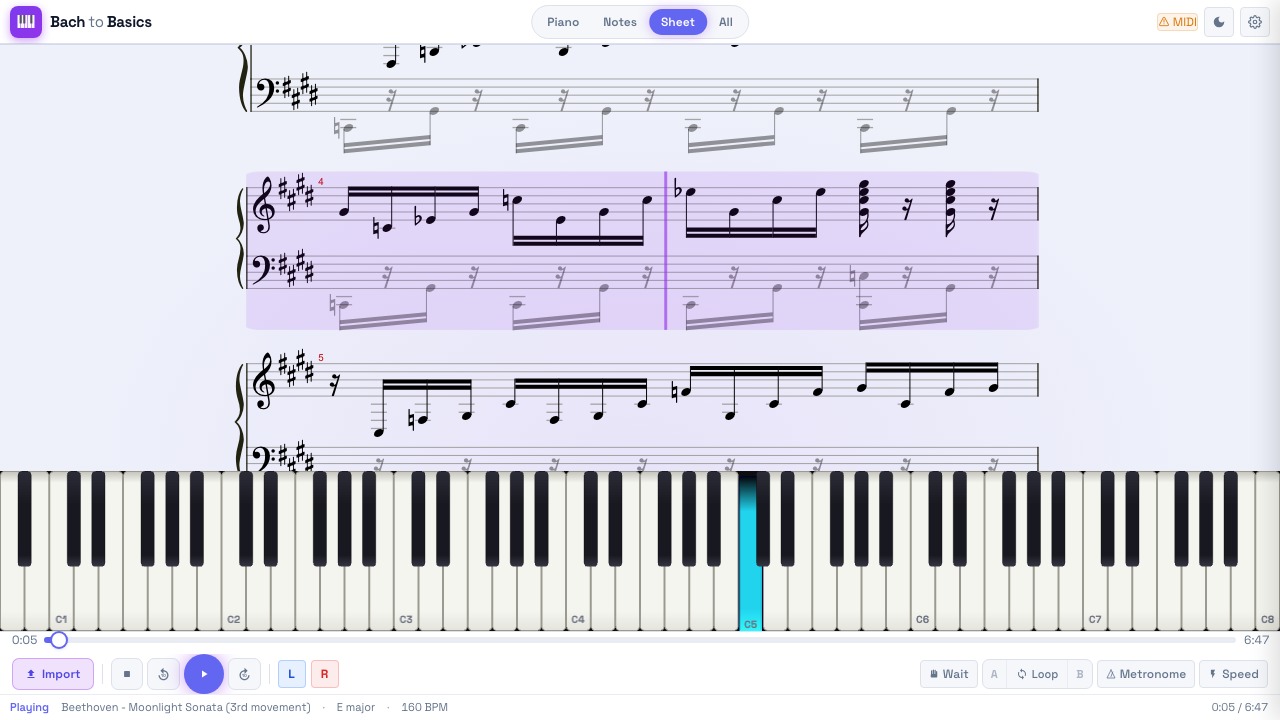

• Sheet music: full notation rendering via AlphaTab, with auto-scrolling cursor that tracks playback. White background toggle so notation stays readable in dark mode.
• 88-key piano: interactive keyboard with hover, press depth, ivory or white key themes. Tap keys to play; drag across them to glissando.

Practice tools

• A/B loop with click-to-set markers; the loop region highlights across all three views
• Speed trainer: auto-ramps tempo on each loop pass (configurable start %, end %, step %)
• Wait mode: playback pauses until you play the correct note. Per-hand: wait for left only, right only, or both.
• Count-in: 0, 1, or 2 bars of metronome before the music starts
• Metronome: accent on downbeat
• Transposition: shift the whole score ±12 semitones
• Per-hand volume: solo or mute either hand independently
• Render-offset: shift audio scheduling ±200 ms to compensate for audio interface latency
• Fingering hints: 1-5 finger digits on the piano keys, optionally also on the falling-note bars. Auto-generates via the Parncutt algorithm (pianoplayer) for files without fingerings, and preserves editorial fingerings already present in publisher MusicXML / .mxl files (Henle, Bärenreiter, etc.). "Regenerate" treats existing fingerings as anchors and only fills in gaps - ideal for editorial scores where only hard passages are annotated.

Audio & MIDI

• 5 instrument options: Splendid Grand Piano, Bright Acoustic, CP80 Electric, Harpsichord, Honky-Tonk (sampled, via smplr)
• MIDI input via Web MIDI: connect a hardware keyboard (Roland, Yamaha, etc.); your input lights up the on-screen keys and drives wait mode
• Tempo control: 25%-200% with snap-back to 100%

Export

Save the loaded piece in any of these formats via the Export button (next to Import):

• MIDI (.midi) - the raw note data
• MusicXML (.musicxml) - full notation, opens in any score editor
• PDF sheet music (.pdf) - typeset via LilyPond (optional backend setup, see below)
• MP3 audio (.mp3) - rendered with the Splendid Grand Piano via an OfflineAudioContext (other instruments to follow; the grand covers the common case)

Look & feel

• Color themes: Cascade, Violet, Classic, Ocean, Forest, or fully custom (left/right/unknown hand colors)
• Dark / light mode: system-aware initial theme, manual override
• Note labels: none, C-only, white keys, black keys, or all

Tech stack

Layer	Technology
Frontend	React 19, TypeScript, Vite, Tailwind CSS
Rendering	PixiJS 8 (falling notes + piano), AlphaTab (sheet music)
Audio	Tone.js (scheduling), smplr (sampled instruments), Web Audio API
MIDI input	WebMidi.js
State	Zustand
Backend	FastAPI (Python 3.11/3.12)
Music processing	music21, defusedxml
OMR (optional)	Audiveris (Java)

Running the app

Option A: Docker (recommended for end users)

The simplest way. Requires only Docker Desktop (or Docker Engine + Compose).

docker compose up        # build the images on first run, then start
open http://localhost:5173

That's it. Stop with Ctrl+C (or docker compose down).

Optional: copy .env.example to .env and set BACKEND_API_KEY if you want to require an API key on the backend.

Option B: Native (recommended for development)

You'll need:

• Node.js 22+ and pnpm (npm i -g pnpm)
• Python 3.11 or 3.12
• Java 17+, only needed for PDF import via Audiveris

pnpm install
pnpm backend:setup      # creates backend/.venv with the core deps
pnpm dev                # frontend on :5173, backend on :8000, with hot reload

Optional: PDF import via Audiveris

PDF to MusicXML uses Audiveris, an open-source OMR engine.

1. Download audiveris.jar from Audiveris releases
2. Place it at backend/bin/audiveris.jar
3. Make sure Java 17+ is on PATH (Docker users: already included in the image)

Without the JAR, MIDI / MusicXML import still works, only PDF import is unavailable.

Optional: PDF export via LilyPond

PDF export uses LilyPond for typesetting. It's not bundled by default (heavy install, ~200 MB).

• macOS: brew install lilypond
• Linux: sudo apt install lilypond
• Docker: add lilypond to backend/Dockerfile's apt-get install line, then docker compose build backend

Restart the backend after installing. Without LilyPond, MIDI and MusicXML export still work; only PDF export is unavailable.

Optional: Audio-to-MIDI via Basic Pitch

Audio-to-MIDI transcription uses Basic Pitch, Spotify's open-source pitch-detection model. It's not bundled by default because it pulls in TensorFlow (~500 MB) and has tight Python-version constraints.

• macOS: requires Python 3.11 specifically. brew install python@3.11, then create a 3.11 venv at backend/.venv and pip install -r backend/requirements-transcribe.txt. (Python 3.12+ doesn't work on macOS because basic-pitch requires tensorflow-macos<2.15.1, and no compatible wheel exists for 3.12.)
• Linux: Python 3.11 or 3.12. Activate the venv and pip install -r backend/requirements-transcribe.txt.
• Docker: edit backend/Dockerfile to also pip install -r requirements-transcribe.txt (or use a separate build target), then docker compose build backend. The image already uses Python 3.12.

Restart the backend after installing. Without Basic Pitch, MIDI / MusicXML / PDF import still works; only audio import (MP3, WAV, etc.) is unavailable.

Using the app on iPad / iPhone (same network)

1. In frontend/vite.config.ts, add host: true to the server block (or run pnpm --filter frontend dev --host)
2. Find your computer's LAN IP (System Settings > Network on macOS)
3. On the iPad, open http://<your-ip>:5173

⚠️ Web MIDI is not available on iOS, the on-screen keyboard works, but you cannot connect a hardware piano via USB or Bluetooth from iOS Safari. This is a WebKit limitation Apple has not addressed.

Public deployments

If you're hosting Bach to Basics on the public internet (not on localhost or behind a VPN), set these env vars on the backend before exposing it:

1. BACKEND_API_KEY - a long random value; clients must send X-API-Key: <value> on every request
2. REQUIRE_AUTH=1 - makes the backend refuse to start if BACKEND_API_KEY is not set (turns a silent log warning into a fail-fast)
3. ALLOWED_ORIGINS - your exact frontend hostname only (e.g. https://piano.example.com), not *
4. Run behind HTTPS (Web MIDI requires it anyway)

Without these, the backend's expensive endpoints (audio transcription, PDF rendering, OMR, YouTube extraction) are open to the internet and can be abused.

Configuration

All backend settings come from environment variables. Copy .env.example to .env and edit.

Variable	Default	Description
ALLOWED_ORIGINS	http://localhost:5173	Comma-separated list of allowed CORS origins
BACKEND_API_KEY	(unset = open)	When set, all requests must include X-API-Key: <value>
REQUIRE_AUTH	(unset)	Set to 1 to make the server refuse to start if BACKEND_API_KEY is not configured - useful for preventing accidental open deployments
RATE_LIMIT_PER_MIN	60	Max requests per IP per minute. 0 disables it
HEAVY_RATE_LIMIT_PER_MIN	10	Stricter limit applied to expensive endpoints (/omr/, /youtube/)
TRUSTED_PROXY_IPS	(unset)	Comma-separated IPs of trusted reverse proxies. When set, the real client IP is read from X-Forwarded-For instead of the connection address
MUSIC21_TIMEOUT_S	60	Hard timeout (seconds) for music21 conversions (MIDI-to-MusicXML, MusicXML-to-MIDI). Raise for very dense scores
AUDIVERIS_TIMEOUT_S	120	Hard timeout (seconds) for Audiveris OMR. Raise for large or multi-page PDFs

Web MIDI requires HTTPS in production. Plain http:// only works on localhost.

Project layout

bach-to-basics/
├── frontend/                     # React app (Vite)
│   ├── src/
│   │   ├── components/
│   │   │   ├── FallingNotes/     # PixiJS falling-note renderer
│   │   │   ├── PianoKeyboard/    # PixiJS 88-key keyboard
│   │   │   ├── SheetMusic/       # AlphaTab sheet music view
│   │   │   └── Transport/        # Transport bar + settings panel
│   │   ├── engine/               # SyncEngine, AudioEngine, MidiClock
│   │   ├── store/                # Zustand app state
│   │   ├── utils/                # Shared utilities
│   │   ├── views/                # PracticeView (main layout)
│   │   └── workers/              # MIDI parsing in a Web Worker
│   └── public/                   # Static assets (soundfont)
├── backend/                      # FastAPI backend
│   ├── routers/                  # transcribe, omr, youtube, export, fingering
│   └── services/                 # blocking work (music21, Audiveris, etc.)
├── shared/                       # TypeScript types shared with the frontend
├── docker-compose.yml            # 1-command run for end users
└── package.json                  # pnpm workspace root

Browser support

Requires a Chromium-based browser (Chrome, Edge, Brave, Arc) for Web MIDI API support. Firefox and Safari don't implement Web MIDI; on those, the on-screen keyboard still works but hardware MIDI input does not.

Roadmap

The backend already exposes endpoints for several features that don't yet have UI hooks:

• YouTube-to-MIDI via yt-dlp + Basic Pitch (/youtube/extract), sync data model already in place

These will become user-facing in upcoming releases. PRs welcome.

Troubleshooting

Sheet music doesn't render after loading a MIDI file

The MIDI-to-MusicXML conversion runs on the backend. Check that the backend is up (curl http://localhost:8000/health should return OK) and look at the backend terminal for music21 errors. Very dense scores can hit the MUSIC21_TIMEOUT_S (default 60s); raise it if needed.

No sound from the on-screen piano

The first interaction (any click) wakes the audio context. If you still hear nothing, open DevTools > Console and look for errors related to AudioContext or sample fetches from smpldsnds.github.io / gleitz.github.io. Some corporate networks block these CDNs.

"WebMIDI not supported" on Firefox or Safari

Use Chrome, Edge, Brave, or Arc. Firefox and Safari haven't implemented Web MIDI.

PDF import says "OMR engine not available"

Either Audiveris isn't installed, or audiveris.jar isn't at backend/bin/audiveris.jar, or Java 17+ isn't on the PATH. See the PDF import section above. MIDI and MusicXML import are unaffected.

Docker build fails on the frontend

The frontend Dockerfile uses the repo root as build context to read pnpm-workspace.yaml and shared/. If you've moved or renamed those, update docker-compose.yml's build.context accordingly.

Contributing

See CONTRIBUTING.md. Bug reports and PRs welcome.

License

MIT for this codebase.

Third-party components (AlphaTab, music21, etc.) keep their own licenses, see NOTICE for the rundown. Notably:

• AlphaTab is MPL-2.0 (per-file copyleft), fine for both open source and commercial use as long as you don't modify AlphaTab's own files.
• Audiveris is AGPL-3.0 and is not bundled, users download it separately, so this repo doesn't inherit AGPL obligations.
